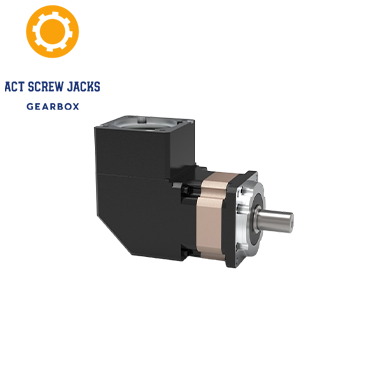

SVX right angle servo gearbox
SVX is our highly successful high precision gearbox series.
The SVX right angle servo gearbox is powered by the helical gearing system, high precision gear tooling and bevel gear grinding technology. The SVX is a great right angle servo gearbox solution for the standard precision motion related manufacturing applications.
Options
Output shaft key way, without key be available.
Synthetic lubrication grease, low temperature grease available.
Adaptor flange solution available.
Features
Ratio: 3 – 512
Backlash: 10 – 15 arcmin
Nominal Output Torque: 32 – 1850 Nm
Technical data

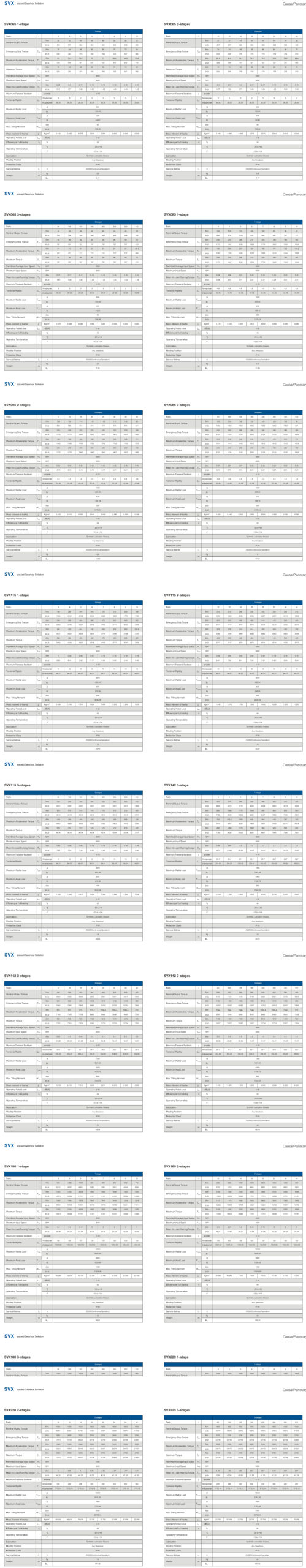

Gearbox Performance Data

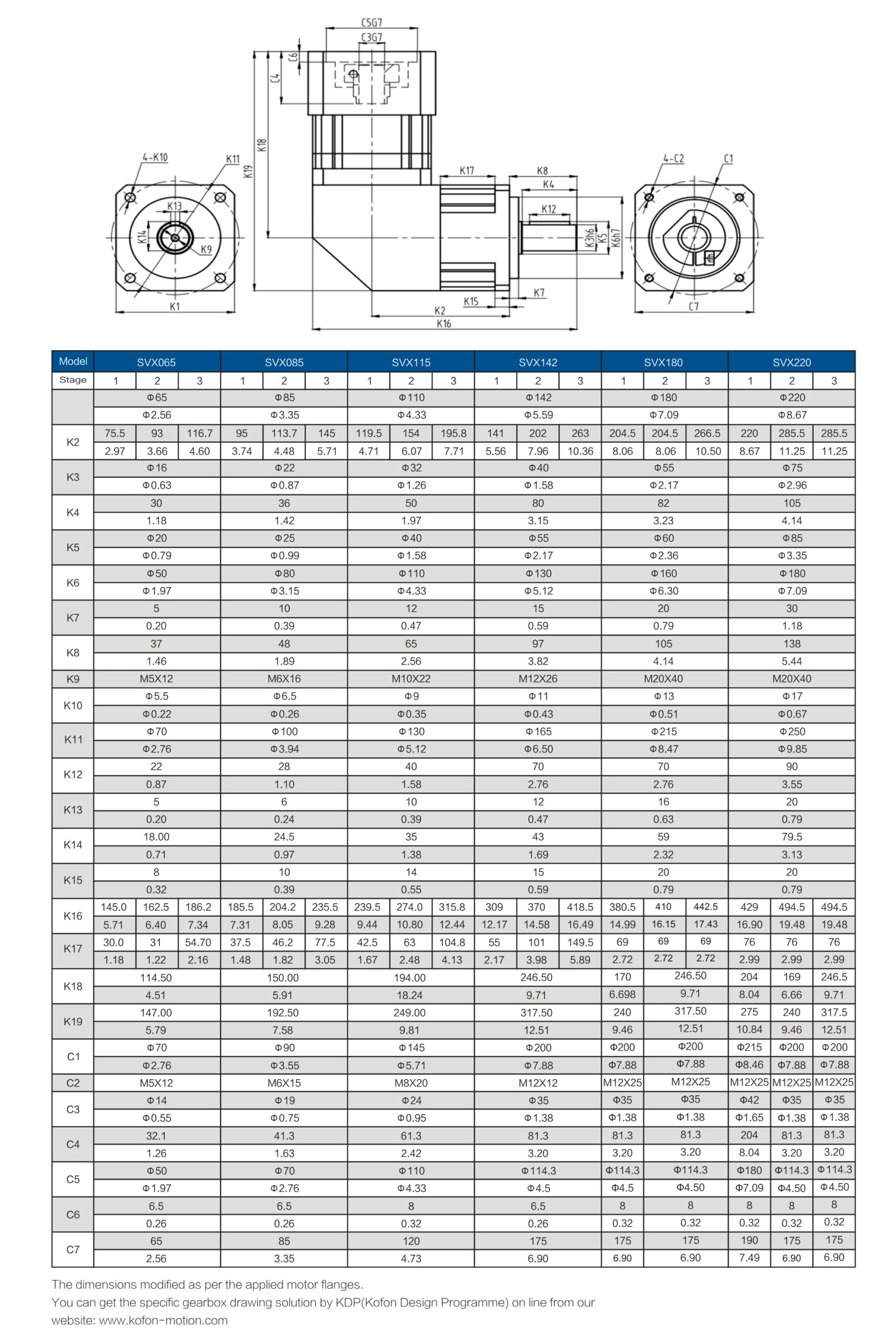

Gearbox Dimensions
Gearbox Selection Instructions
Gearbox Drawings
Other technical question please contact our overseas sales team: info@screwjackact.com
Gearbox Ordering Instructions
