KVX Series Servo Planetary Gearbox
KVX Series Servo Planetary Gearbox is our highly successful high precision gearbox series.
The KVX Series Servo Planetary Gearbox is powerfully featured by the helical gearing system, gear grinding technology and patented Master CagedSpindle planetary carrier. The KVX Series Servo Planetary Gearbox is the ideal servo gearbox solutions for the high precision motion applications.
Options
Output shaft key way, without key be available.
Synthetic lubrication grease, low temperature grease available.
Adaptor flange solution available.
Features
Ratio: 3 – 100
Backlash: 8 – 10 arcmin
Nominal Output Torque: 42 – 1500 Nm
Technical data

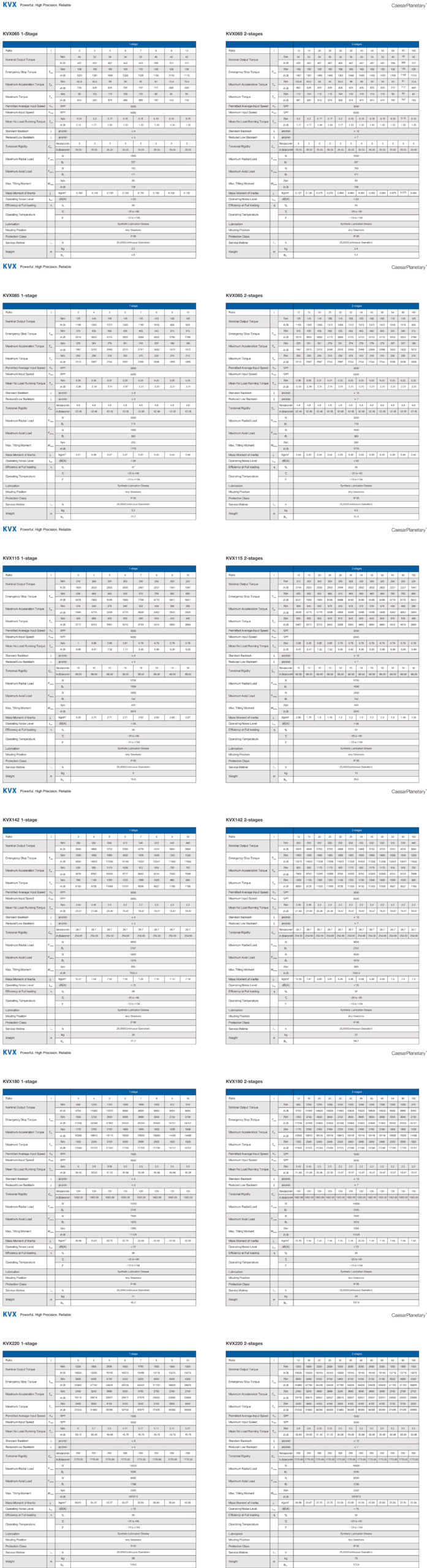

Gearbox Performance Data

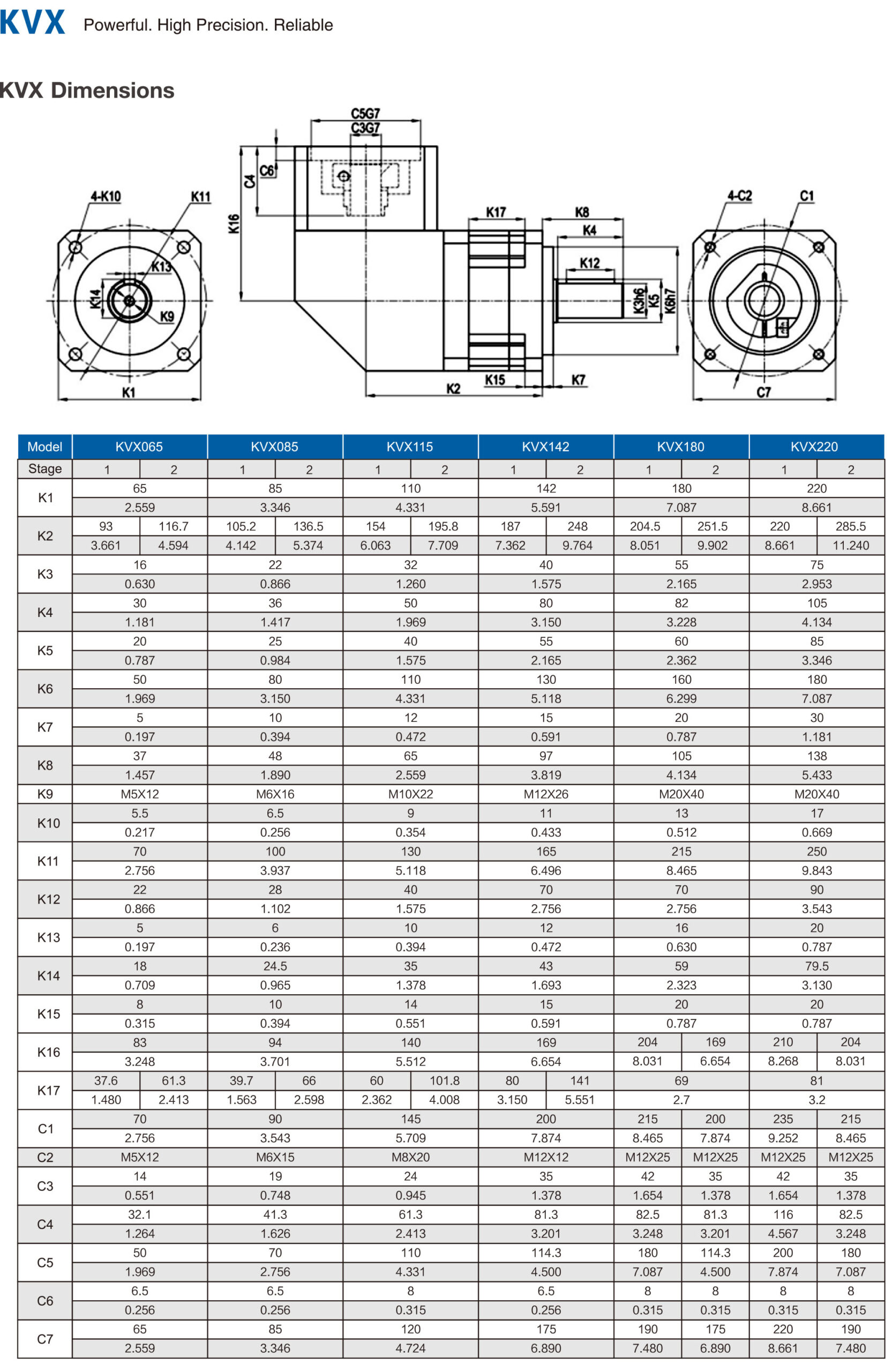

Gearbox Dimensions
Gearbox Selection Instructions
Gearbox Drawings
Other technical question please contact our overseas sales team: info@screwjackact.com

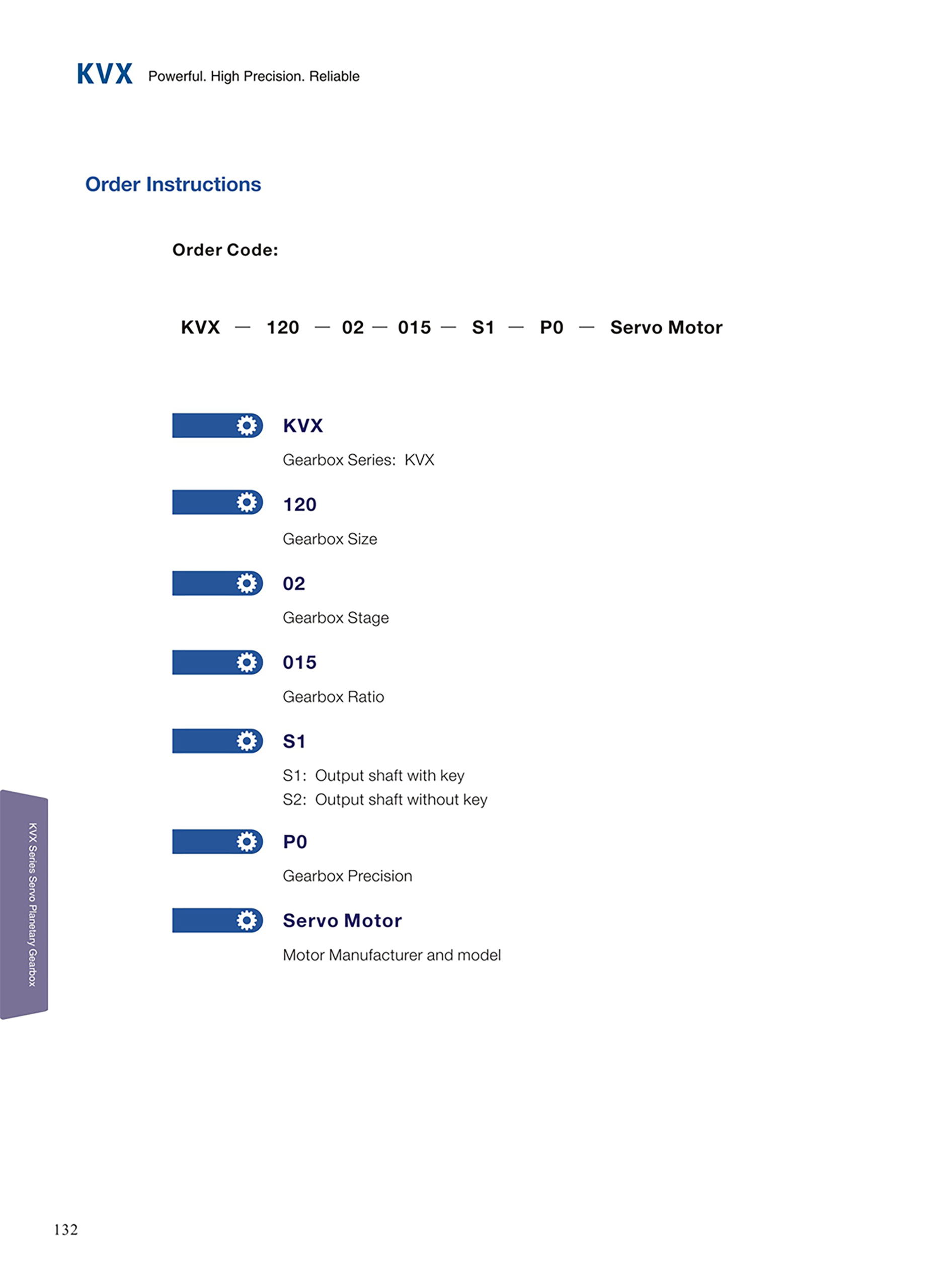

Gearbox Ordering Instructions
Downloads
Request a Quote
