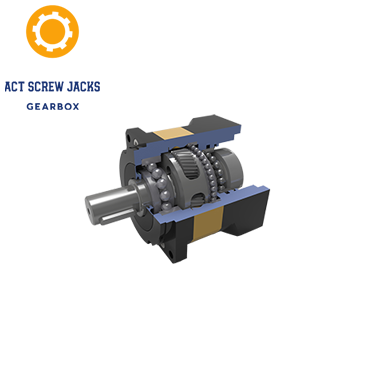

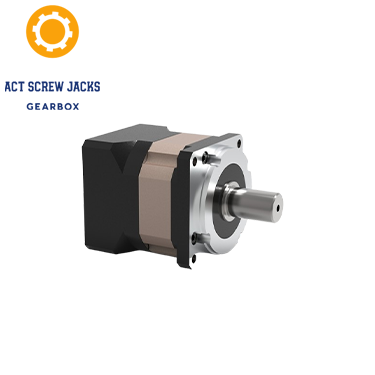

KPX Series Servo Planetary Gearbox
All KPX Series Servo planetary gearbox adopt the alloy forged steel as the raw material, the powerful heat treatment, the latest helical gear design, full needle roller bearings, and global top level gear grinding craft. Perfect integrated design of caged planetary carrier and output shaft to realize high rigidity. For any high precision applications, KPX Series Servo planetary gearbox would be your great option for planetary gearhead.
Options
Output shaft key way, without key be available.
Synthetic lubrication grease, low temperature grease available.
Adaptor flange solution available.
Features
Ratio: 3 – 100
Backlash: 6 – 8 arcmin
Nominal Output Torque: 14 – 1500 Nm
Technical data

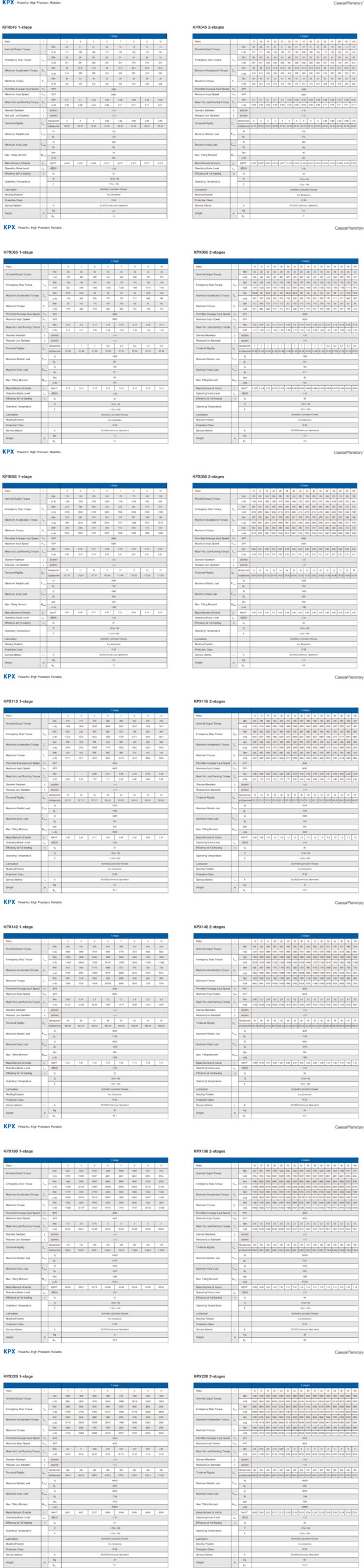

Gearbox Performance Data

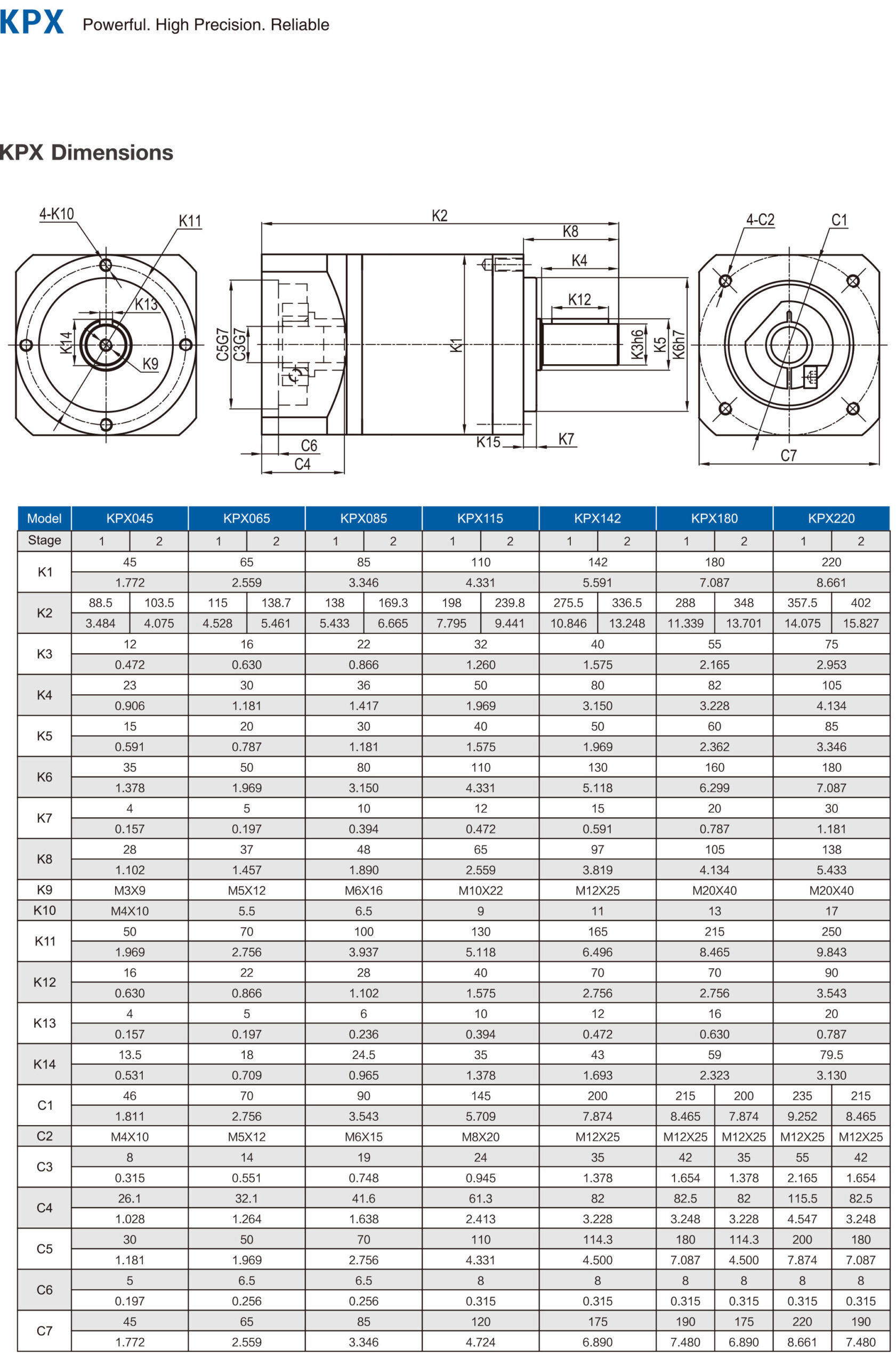

Gearbox Dimensions
Gearbox Selection Instructions
Gearbox Drawings
Other technical question please contact our overseas sales team: info@screwjackact.com
Gearbox Ordering Instructions
