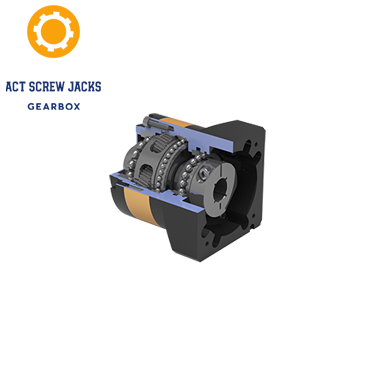

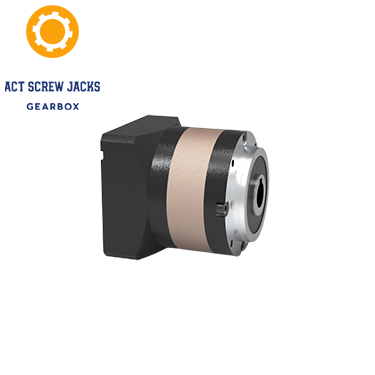

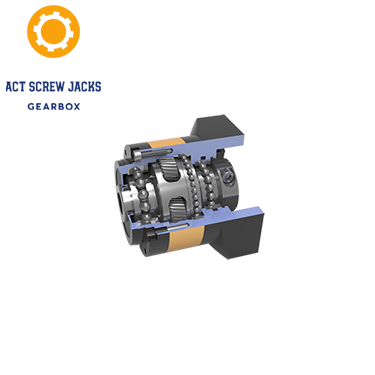

KPLN Series Servo Planetary Gearbox

KPLN is our highly sucessful high precision gearbox series

All KPLN Series Servo Planetary Gearbox  adopt the alloy forged steel as the raw material, the powerful heat treatment, the latest helical gear design, full needle roller bearings, and global top level gear grinding craft. Perfect integrated design of caged planetary carrier and output shaft to realize high rigidity. For any high precision applications, KPL Series Servo Planetary Gearbox would be your great option for planetary gearhead.



Options

Output shaft key way, without key be available.

Synthetic lubrication grease, low temperature grease available.

Adaptor flange solution available.

Features

Ratio: 3 – 100

Backlash: 6 – 8 arcmin

Nominal Output Torque: 14 – 1500 Nm

Technical data

Gearbox Performance Data

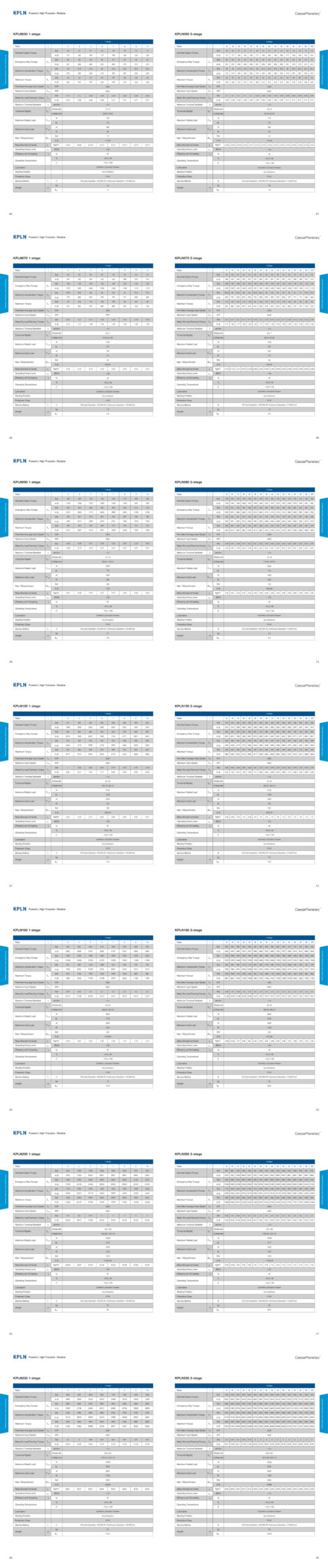

KPLN Gearbox performance Data

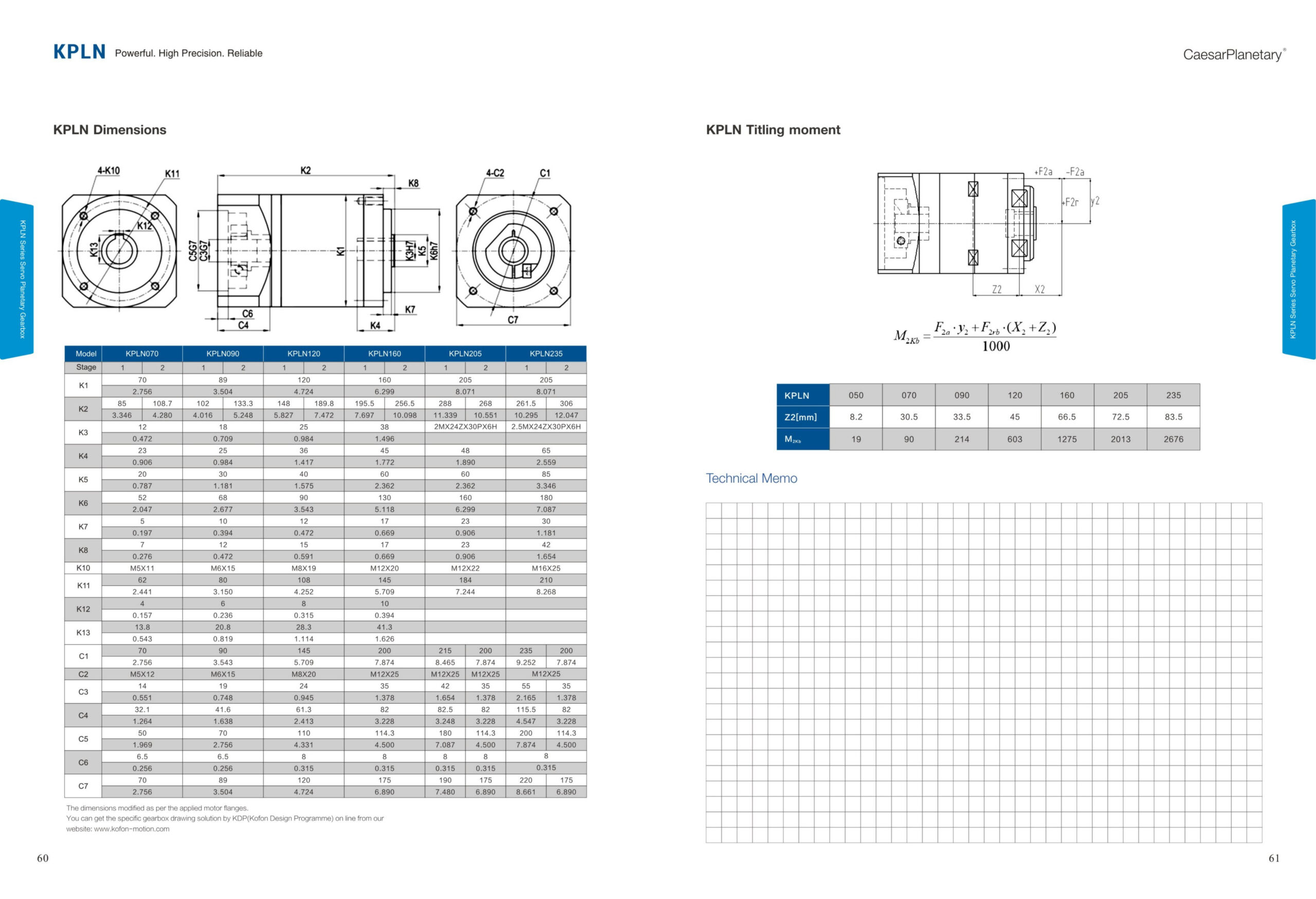

kpln gearbox dimensions scaled
kpe gearbox selection scaled

Other technical question please contact our overseas sales team: info@screwjackact.com

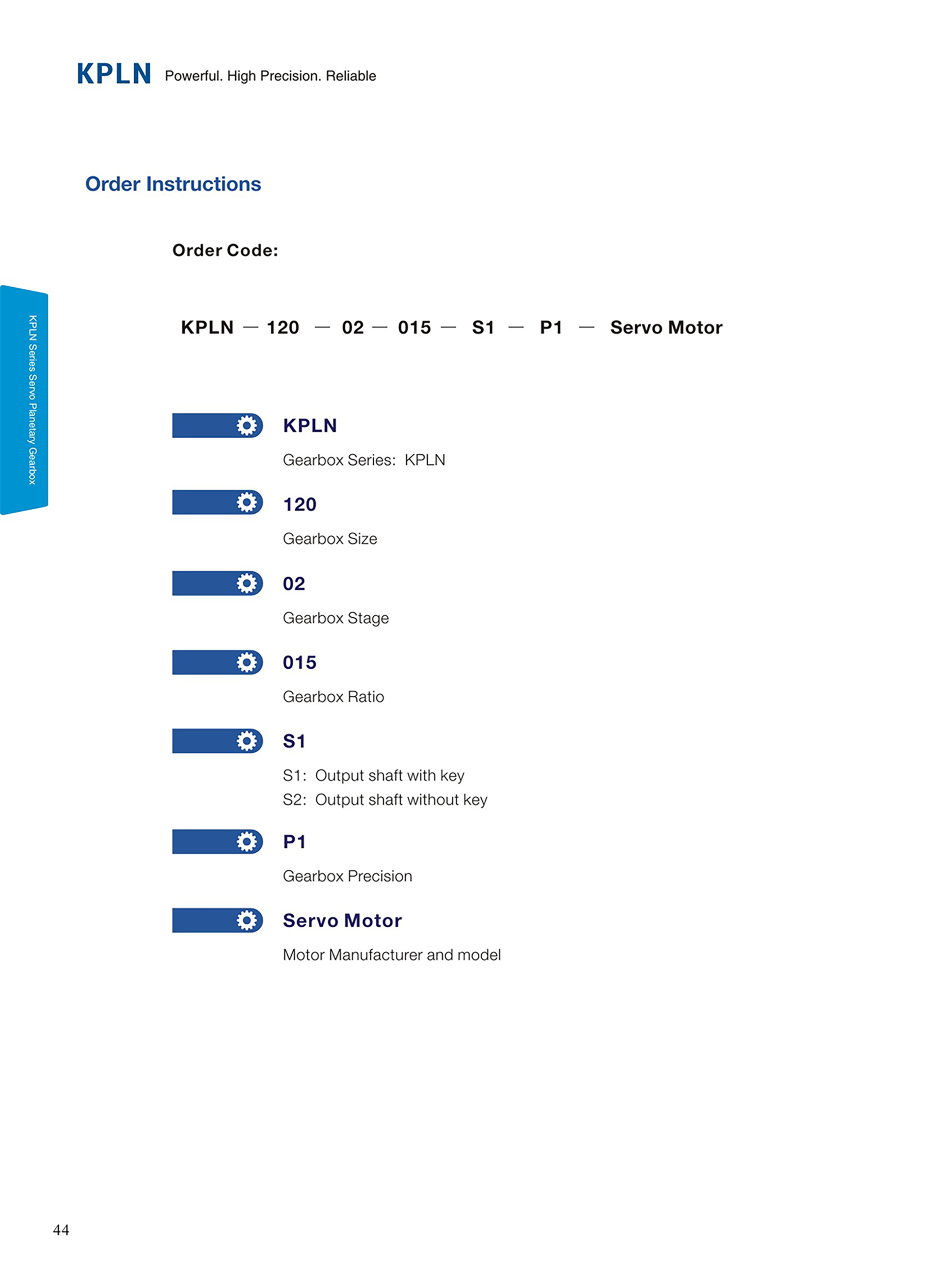

kpln order instructions

Downloads

Series Catalogue

Installation & Maintenance
